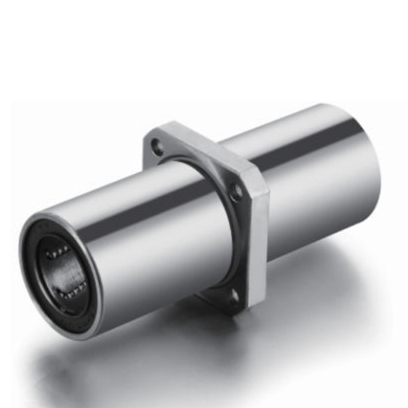

The Type-LMKM-L is a heavy-duty, long-type linear motion bearing unit characterized by a square flange with mounting holes on the flange face. The model designation can be broken down as follows: "LMK" indicates a Square Flange type, "M" specifies that the flange has Mounting holes on its face, and "-L" denotes a Long (extended) version. This design combines the supreme anti-rotation stability of a square flange, the high rigidity of direct face-mounting, and the exceptional load capacity and moment resistance of an elongated bearing housing. It is engineered for the most demanding applications where maximum stability, rigidity, and load-bearing performance are required.
| Anfrage | Bearing Number | Principal dimensions （mm) | Weight(Kg) | ||
|---|---|---|---|---|---|
| d | D | B | |||
| Extended Intermediate Square Flange Type | 110 | 130 | 38 | ||
