Structural Features
The SUCPH202 bearing is a pre-assembled unit consisting of a spherical outer ring ball bearing and a high-center vertical housing (P-type housing)
. Its design offers several significant advantages:
Self-Aligning: The spherical surface of the bearing's outer ring can mate with the spherical inner bore of the housing. This allows it to automatically compensate for misalignment caused by mounting errors or slight shaft deflection during operation, reducing additional wear and ensuring smooth operation
.
Sealing and Lubrication: The bearing is typically equipped with effective sealing, such as double-layer dust covers, to prevent contaminants like dust and moisture from entering the interior, thereby extending its service life in harsh environments
. Furthermore, it is usually pre-filled with an appropriate amount of grease and may feature a lubrication nipple (oil injection hole) for convenient subsequent maintenance
.
Easy Installation: The compact bearing unit allows the inner ring to be securely locked onto the shaft via built-in set screws (grub screws). The entire housing can then be directly bolted onto the equipment base, making installation very convenient
.
Application Scenarios
Thanks to their robust construction, self-aligning capability, and ease of maintenance, bearings like the SUCPH202 are widely used in mechanical equipment across various industrial sectors
, for example:
Conveying Machinery: Such as belt conveyors and screw conveyors.
Agricultural Machinery.
Textile and dyeing equipment.

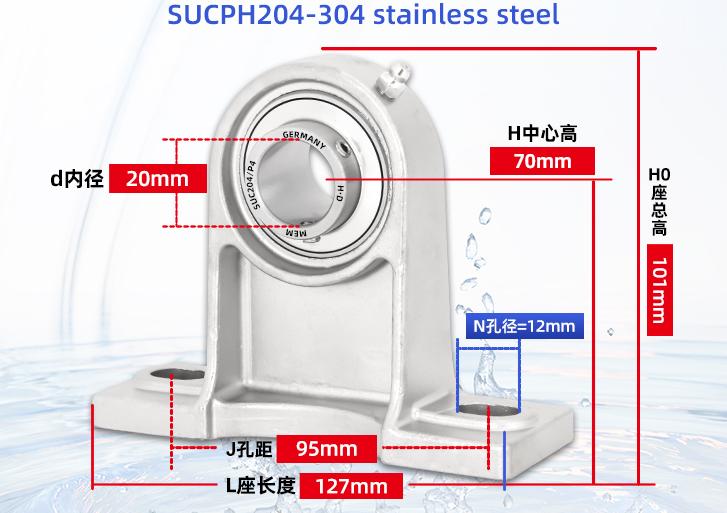

Depending on the housing material (e.g., stainless steel options as seen in SUCP200 series variants), they are also particularly suitable for applications with high requirements for hygiene and corrosion resistance, such as food processing, medical equipment, and chemical processing equipment
.
