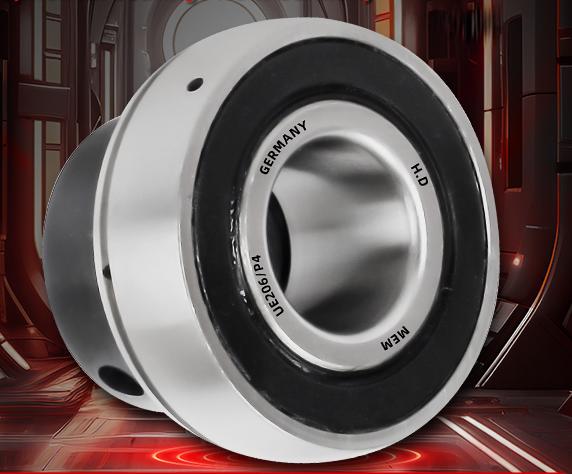

UE206 Insert Bearing with Housing
The UE206 is a common type of insert bearing with housing, typically consisting of the bearing unit itself and a specialized housing
.
Basic Structure: Its internal structure is similar to a deep groove ball bearing. However, a key feature is that the outer surface of its outer ring is spherical. This allows it to mate with the concave spherical surface of the housing, providing a self-aligning effect that compensates for misalignment caused by installation errors or shaft deflection
.Mounting and Fixing: The inner ring of this bearing is usually secured to the shaft via methods such as set screws, eccentric collars, or adapter sleeves
. This makes installation and disassembly relatively convenient.Sealing and Application: The UE206 bearing is generally equipped with seals, which effectively prevent the ingress of contaminants. It is also pre-lubricated ex-factory, making it suitable for applications in relatively harsh operating environments such as agricultural machinery, mining machinery, and conveyor equipment
.Main Dimensions: Its basic dimensions are a bore diameter (d) of 30 mm, an outer diameter (D) of 62 mm, and a width (B) of 35.7 mm
.
