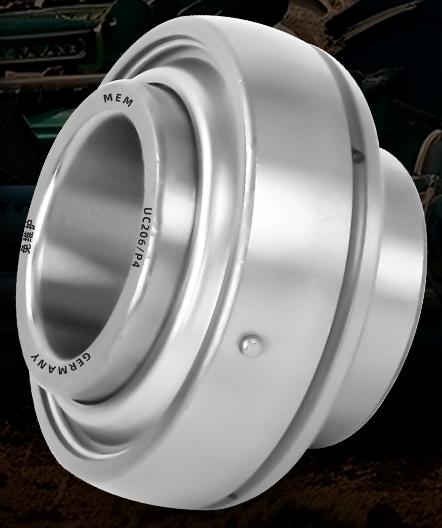

The design of the UC206 series incorporates clever ideas to solve practical problems, and its advantages are mainly reflected in the following aspects:
Self-Aligning Capability: The bearing's outer ring has a spherical outer surface that fits into a corresponding spherical housing bore. This allows the bearing to accommodate a certain degree of angular misalignment and shaft deflection, compensating for issues like installation inaccuracies or frame deformation. This effectively reduces edge stress and extends service life
.Secure Locking Method: The bearing features a wide inner ring that is secured directly to the shaft by two set screws positioned at a 120-degree angle to each other
. This locking method is simple, reliable, provides effective torque transmission, and is suitable for environments with low vibration.Ready-to-Install Unitized Design: The UC206 is often supplied as a pre-assembled "bearing unit with housing"
. These units are delivered pre-lubricated and with seals already installed. Users only need to install the complete unit onto the equipment, which greatly simplifies the assembly and maintenance processes.| Anfrage | Bearing No. | d | D | B | rmin |
|---|---|---|---|---|---|
| 参数类别 | 具体参数 | 详细信息 | |||
| 基本尺寸 | 内径 (d) | 30 mm | |||
| 性能数据 | 额定动载荷 (Cr) | 19,500 N 至 20,700 N | |||
| 其他特性 | 重量 | 约 0.32 kg (仅轴承) |
