Design Features and Advantages

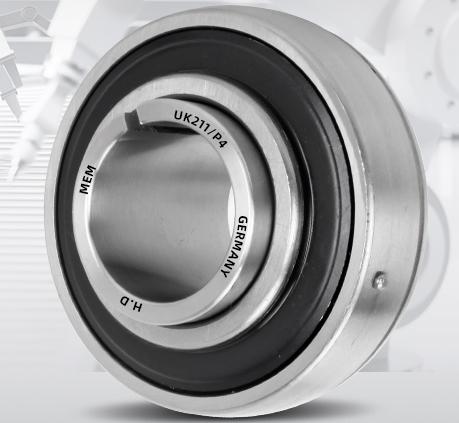

The UK211 bearing offers the following key design benefits:
Self-Aligning Capability: The spherical outer diameter surface of the bearing allows it to align automatically with the concave spherical surface of the housing. This enables the bearing to compensate for misalignment caused by installation errors, shaft deflection, or poor alignment, thereby reducing unnecessary additional loads
.Ease of Installation and Maintenance: The UK211 model typically adopts an eccentric locking sleeve or set screw design, allowing direct fixation to the shaft for straightforward installation
. The bearing is usually sealed on both sides to prevent contamination and is pre-lubricated at the factory, generally eliminating the need for cleaning or relubrication before installation, which simplifies the process.Robustness and Suitability: Its sturdy construction and sealed design provide excellent protection, making it well-suited for relatively harsh conditions with vibrations and impacts
.
