Product Features and Applications

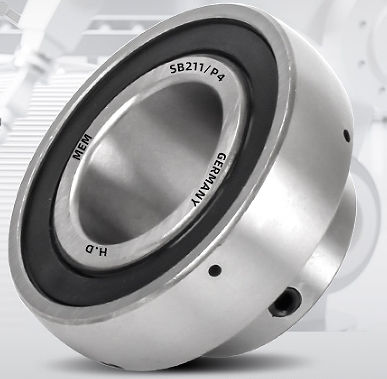

Self-Aligning Capability: The SB211 bearing is a type of set screw locking insert ball bearing with a spherical outer diameter. The spherical outer surface of its outer ring allows it to be seated into the corresponding concave spherical surface of the bearing housing, providing an automatic self-aligning effect. This design effectively compensates for misalignment caused by installation errors or shaft deflection
.Easy Installation and Sealing: This type of bearing is typically pre-lubricated with grease and comes equipped with sealed rings ex-factory, offering effective protection against dust and contamination. It generally requires no cleaning or additional lubrication before installation
. The set screws on the extended inner ring facilitate direct and secure fastening onto the shaft, which simplifies the installation and maintenance process. It is important to note that this set screw locking structure is suitable for applications with a limited range of vibration, and the permissible axial load must not exceed 20% of the dynamic load rating .Primary Application Fields: Due to its self-aligning performance, effective sealing, and ease of installation, the SB211 bearing is well-suited for relatively harsh working environments where alignment requirements are not critical. It is commonly used in agricultural machinery, conveying systems, and construction machinery
.
