Core Characteristics and Application Scenarios

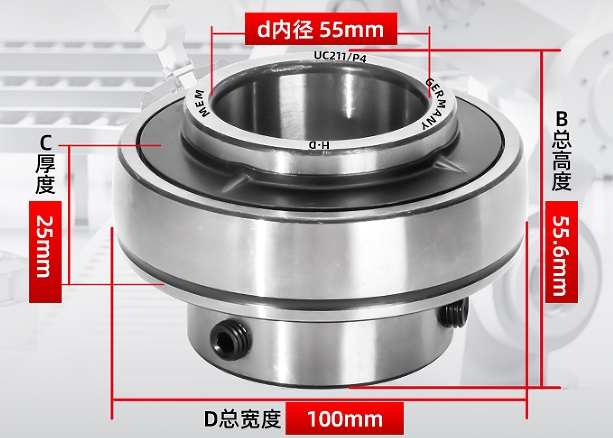

The UC211 bearing unit features a distinctive design, primarily consisting of a double-sealed outer spherical ball bearing and a cast (or stamped) bearing housing combined into a complete, ready-to-install unit
.
Self-Aligning Capability: The spherical outer surface of the bearing's outer ring allows it to mate with the concave spherical surface of the bearing housing. This provides an automatic self-aligning effect, compensating for misalignment caused by installation errors or shaft deflection, thereby enhancing system reliability
.Set Screw Fixing for Easy Installation: The inner ring is secured directly to the shaft via two set screws positioned at a 120° angle, facilitating straightforward installation. It is important to note that this fixation method is more suitable for operating conditions with a limited range of vibration
.Effective Sealing and "Maintenance-Free" Operation: The bearing is typically pre-lubricated with grease and comes equipped with sealing rings ex-factory, offering effective protection against dust and contamination. This design is essentially "maintenance-free," as it generally requires no cleaning or additional lubrication before installation
.Thanks to these characteristics, the UC211 bearing is well-suited for supporting components in various manufacturing industries, including textile machinery, ceramic machinery, agricultural machinery, conveying equipment, and construction machinery
.
