Structure and Application Features
The main characteristics of SUCHA203-type bearing units with housing lie in their ease of installation and adjustment. The mounting holes (e.g., threaded holes) on the housing allow them to be directly fixed to the equipment casing. The spherical outer ring design provides a certain degree of self-aligning capability, which can compensate for minor misalignments caused by installation errors or shaft deflection, thereby ensuring smooth operation.
Selection and Alternatives
Material Options: In addition to standard steel products, SUCHA203 made of stainless steel is also available on the market, suitable for special environments such as food and chemical industries where rust prevention and corrosion resistance are required.
Brand Reference: Besides the TR brand, other brands like Wanma (WM) also produce the same model. When selecting, attention can be paid to differences in price, supply cycle, etc., among different brands.

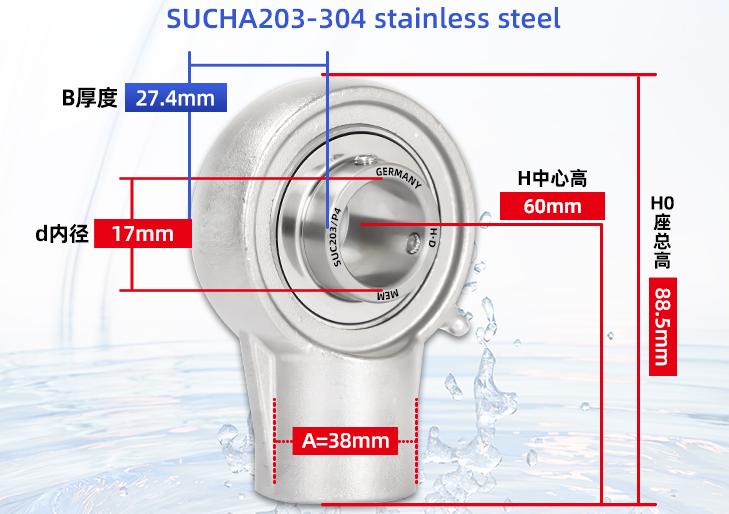

Model Confirmation: Be sure to verify that the dimensions of SUCHA203, such as the shaft diameter (17mm) and installation space, meet the requirements of the equipment.
