Design and Performance Characteristics

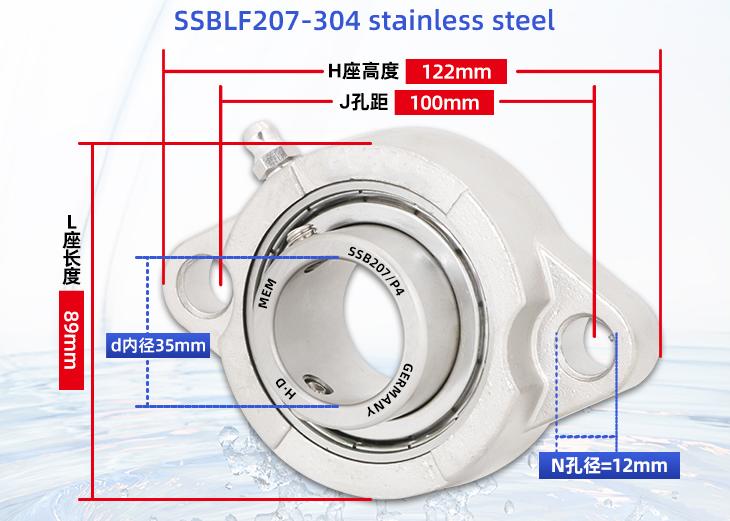

The design features of the SBLF207 bearing stem from its fundamental design as an outer spherical ball bearing
.
Self-Aligning Capability: The outer surface of the bearing’s outer ring is spherical. When installed into a bearing housing with a matching spherical inner bore, it can automatically align itself
. This characteristic effectively compensates for misalignment caused by installation errors, shaft deflection, or machining inaccuracies, thereby reducing wear and vibration
.
Ready-to-Install and Sealing: This type of bearing is typically equipped with seals on both sides, which effectively prevent contaminant ingress
. Furthermore, it is pre-lubricated ex-factory, enabling a "ready-to-install" approach that significantly simplifies maintenance
. The set screw locking design (often indicated by the "S" in the model code) facilitates direct and secure fastening onto solid shafts
.
Load Characteristics: The bearing is primarily designed to withstand combined radial and axial loads, with radial loads being the main component
. It is important to note that its allowable axial load is generally limited, and it is not suitable for carrying pure axial load alone
.
