Performance Characteristics

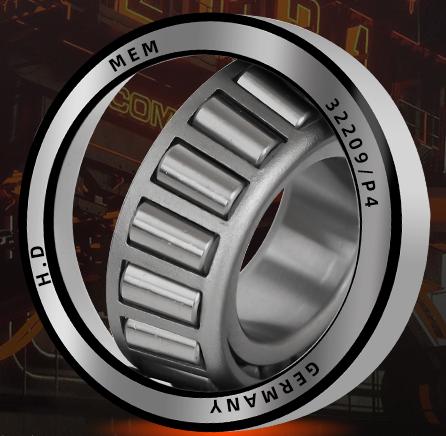

The performance characteristics of the 32209 bearing primarily stem from its tapered roller bearing design
.
Combined Load Capacity:Due to its tapered roller design, the bearing can simultaneously withstand combined radial loads(force perpendicular to the axis) and unidirectional axial loads(force along the axis), resulting in a high combined load-carrying capacity
. The conical geometry creates a line contact between the rollers and raceways, distributing loads over a larger area for effective stress reduction
.
Separable Design:The bearing's inner ring (including the rollers and cage) and outer ring can be separated
. This feature simplifies the installation and disassembly processes. It also allows for the adjustment of the bearing's internal clearance after installation, which is crucial for optimizing system rigidity, controlling running accuracy, and reducing vibration and noise
.
High Speed and High Rigidity:This bearing is designed for high rotational speeds and offers high rigidity, providing good resistance to impact and vibration
. The tapered design and the ability to adjust preload contribute to its stability under demanding operational conditions.
